Architecture

Overview

The current SDK is divided into clear layers:

• src/request: handle HTTP transport and map API errors
• src/models: parse payload into User, Chat, Message, Update, WebhookInfo
• src/core: Bot, Application, ApplicationBuilder, CallbackContext
• src/handlers: handle commands and messages
• src/filters: filters can be combined
• src/i18n: runtime message system for vi/en

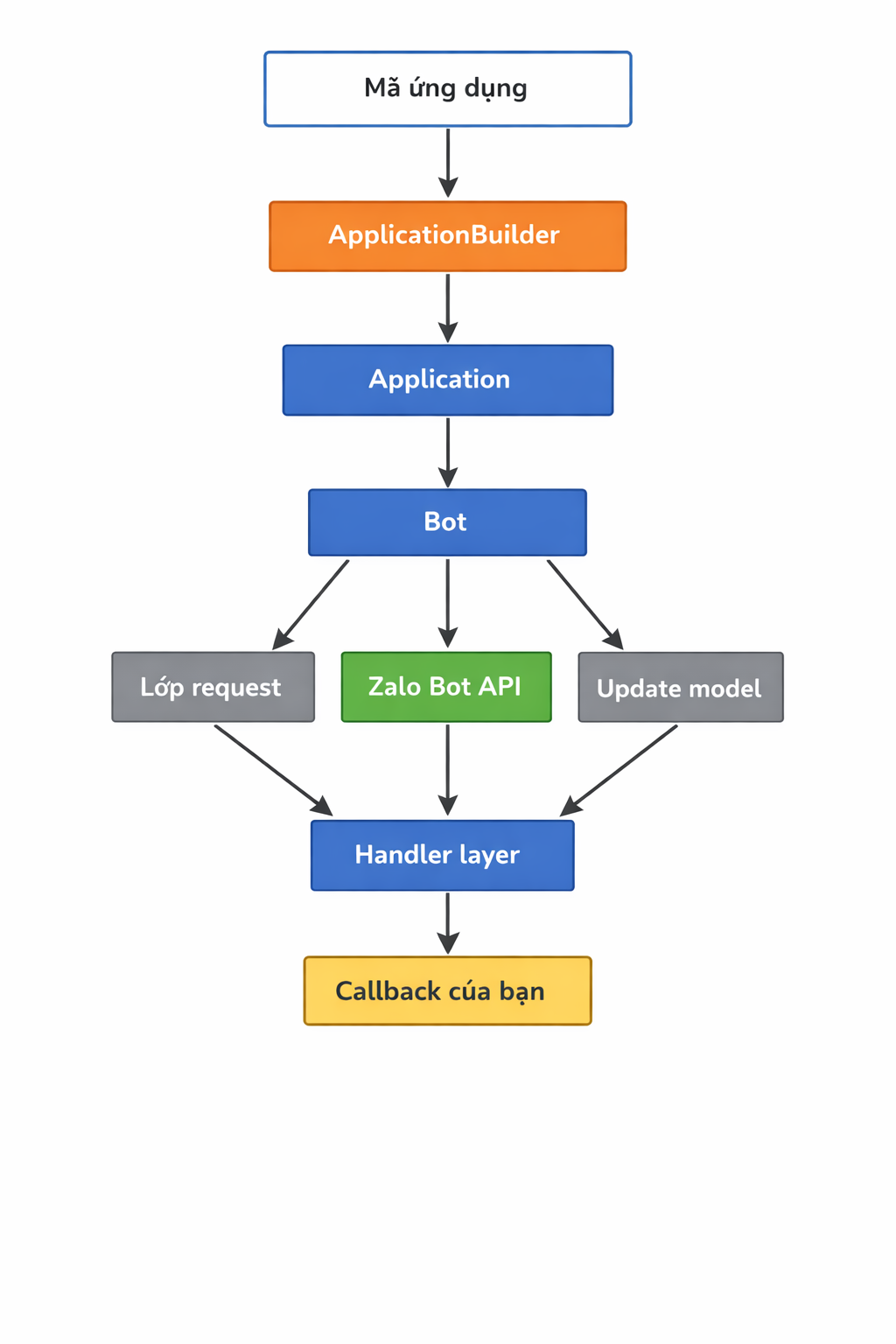

Basic run flow

Mapping from Python to TypeScript

This project is referenced from python_zalo_bot, but not mechanically copied.Some parts have been simplified:

• remove Python-only patterns like __slots__, sentinel defaults, freeze object
• keep lifecycle clear via initialize() and shutdown()
• Prioritize objects and more compact TypeScript parsers
• fallback parse for message sending response if the API returns a thin payload

Role of each main block

src/request

This is the bottom layer of the SDK.It is responsible for:

• HTTP call to Zalo Bot API
• handle timeouts
• map HTTP status to custom error

src/models

Models receive the raw payload and convert it into an object that is easier to use in code, for example:

• Update
• Message
• User
• Chat

src/core

Here is the main dispatcher:

• Bot: client calls API
• Application: polling round and dispatch update
• ApplicationBuilder: clearer way to initialize the app

src/handlers and src/filters

These two parts create event-driven programming:

• CommandHandler is used for commands like /start
• MessageHandler is used for text, photos or other filters
• filters allows combining conditions in an easy-to-read fashion

src/i18n

This section reads ZALO_BOT_LANG and decides whether log/runtime messages should be displayed in Vietnamese or English.

Current limit

• There is no full media upload abstraction yet
• There is no worker queue layer yet
• webhook framework adapters have not been separated into separate packages

Thread runs when polling

1. App is created from ApplicationBuilder
2. Application.runPolling() calls Bot.initialize()
3. Bot.initialize() checks the token via getMe()
4. Application repeats getUpdate()
5. Update is parsed into a model
6. The first Handler to match will handle the update
7. Your callback can call replyText() or other message sending methods
